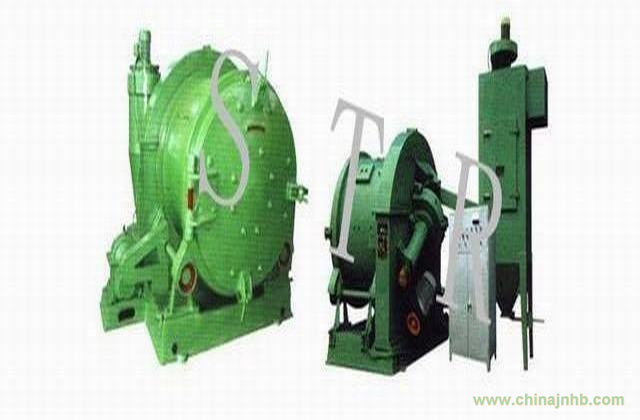

Q31系列滾筒式拋丸清理機
Q31系列滾筒式拋丸清理機
◆產品特點 Product features
該滾筒式拋丸清理機是利用高速回轉的葉輪將彈丸拋向滾筒內連續翻轉的工件上，從而達到清理工件的目的，屬于鑄造機械范圍。它適用于各行業中的15公斤以下的鑄鍛件的清砂、除銹、去氧化皮和表面強化。由于本機帶有獨特的集塵裝置，故安裝地點不受車間通風管路的限制，且衛生條件好，本機設有自動停機裝置，操作簡便。
The cylinder shot cleaning machine uses high-speed rotary impeller projectile into the roller continuous turn over on the inside, so as to achieve the purpose of cleaning up the workpiece, belong to casting machinery range. It is suitable for various industries of 15 kg of the castings and forgings rust-removing, derusting, to oxide skin and surface strengthening. Because the machine with a unique dust collection device, the installation site from workshop, and the limitation of the ventilation pipe health condition is good, the machine has automatic stop device, easy operation.
◆主要技術參數 Main technical parameters
機器型號 Model
|
Q3
|
機器型號 Model
|
滾筒直徑 Roller diameter
|
1000mm
|
拋射速度 Aerosol propellant speed
|
拋丸量 Shot peening quantity
|
100kg/min
|
最大載重量 Maximum Loading Capacity
|
滾筒內長 Roller inner length
|
800mm
|
吸風量 Aspirating capacity
|
葉輪直徑 Impellerdiameter
|
420mm
|
工件長度 Workpiece length
|
滾筒轉速 Roller speed
|
3 r/min
|
分離效率 Separative efficiency
|
葉輪轉速 Impeller speed
|
2300r/min
|
工件單重 Workpiece single heavy
|
最大有效容積 Maximum effective volume
|
0.1m3
|
機器外型尺寸 Shape dimension
|
