TECOTA MOTORI

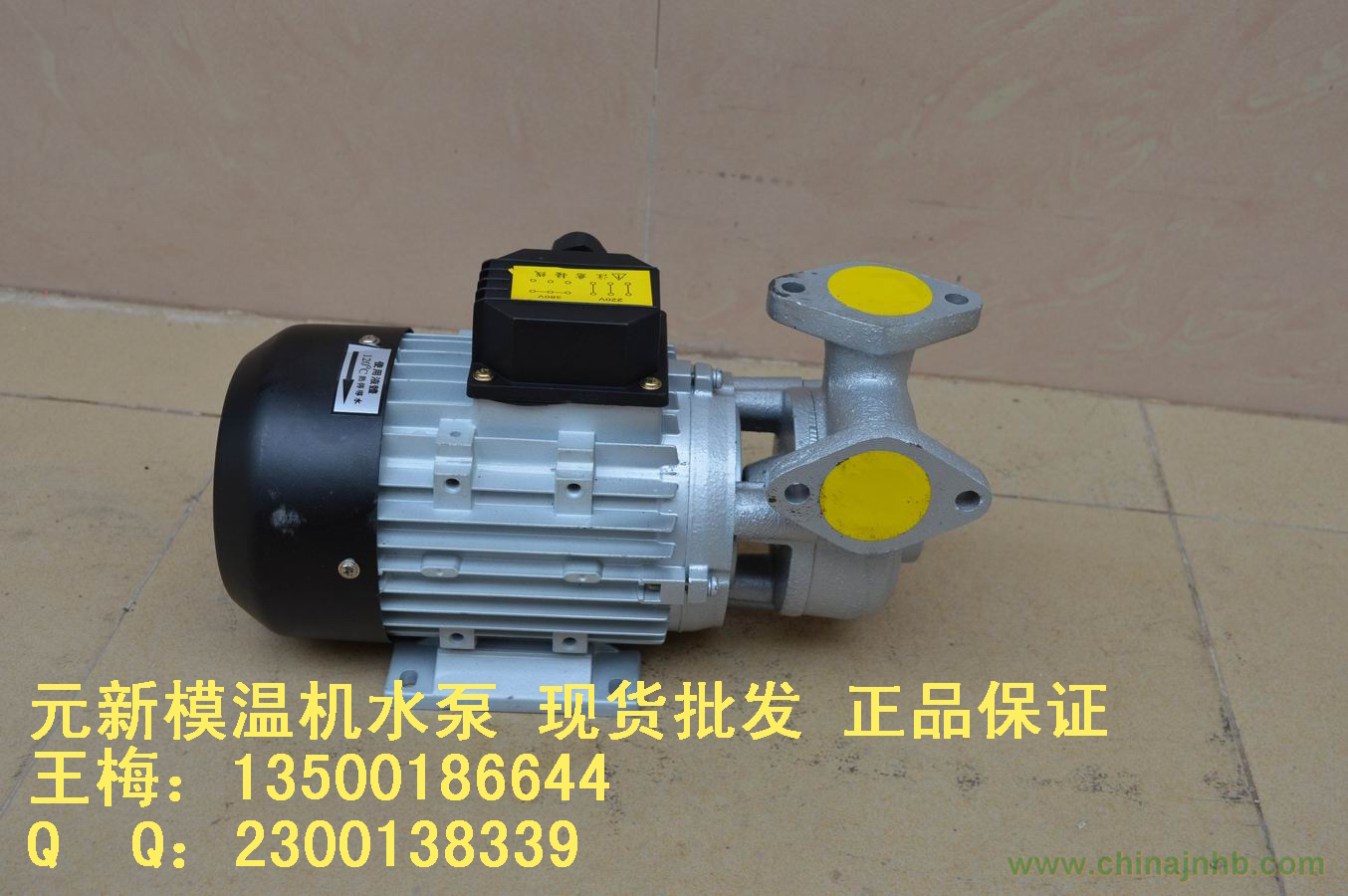

YS-15A YS-15B YS-15C YS-15D 模溫機水泵
木川高溫泵
應用范圍/Scope of application
·高溫循環系統 ·High temperature circulatory
·工業增壓 ·Industrial supercharger
circulatory
·一般不含顆?；蚶w維之液體 ·General
non-particles or fibrous
liquid
使用條件/Conditions of use
·一般液體：-5℃～＋50℃ ·General liquid：-5℃～＋50℃
·高溫熱水：+50℃～＋160℃ · Hot water：+50℃～＋160℃
·高溫熟導油：+50℃～＋180℃· Thermal conductivity
oil：+50℃～＋180℃
·最大工作環境溫度：+40℃ ·The maximum working temperature：+40℃
性能范圍/Performance scope
|
口徑
Diameter
|
型號
Madel
|
電機(kw/hp)
Motor
|
揚程
Capacity
|
流量(L/min)
Total head
|
泵浦自重
Pump Weight
|
|
19
|
YS-15A
|
0.37 / 1/2
|
28
|
42
|
9
|
|
19
|
YS-15B
|
0.75 / 1
|
38
|
56
|
12.5
|
|
25
|
YS-15C
|
1.5/ 2
|
45
|
110
|
18
|
性能曲線圖/Performance curve
安裝圖/Instal lation sketch
|
型號
Madal
|
功率
Raring
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
|
YS-15A
|
1/2HP
|
208
|
80
|
165
|
63
|
60
|
125
|
100
|
135
|
90
|
21
|
130
|
|
YS-15B
|
1HP
|
310
|
90
|
175
|
71
|
68
|
145
|
112
|
127
|
95
|
/
|
138
|
|
YS-15C
|
2HP
|
360
|
100
|
195
|
80
|
65
|
165
|
125
|
150
|
125
|
/
|
175
|
