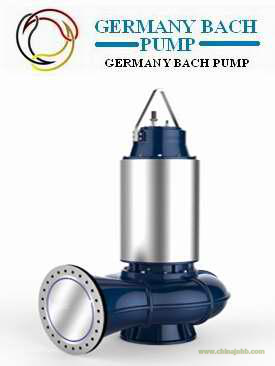

進口潛水式排污泵

進口潛水排污泵產品概述：

固定式自動安裝采用泵與耦合裝置相連。耦合裝置由底座、固定于底座上的轉接管道、垂直固定于底座上的雙導軌、連接轉接管道與潛水泵的自動耦合器等組成。耦合底座固定在泵坑底部（在建造污水坑時，預先安裝好地腳螺栓，使用時將耦合底座固定），在潛水泵的底端面固定設置兩側帶有凹槽的定位架板，底座延伸至潛水泵下方，垂直固定于底座上的雙導軌設置為分別嵌裝入定位架板兩側凹槽內并與凹槽滑動配合的支柱導軌，兩支柱導軌上端固定設置安裝起重吊具的承重橫梁支架。在承重橫梁上附加起重吊具，如電動葫蘆，即可方便地 進行潛水泵的上提及下送，免去了手工操作的高強度消耗及安裝吊裝架等設施的復雜過程，使?jié)撍玫木S修、更換作業簡便，節省人力，提高效率，降低作業成本。 泵在導軌上移動，放下泵時，耦合裝置自動地與耦合底座耦合；提取泵時，泵與耦合底座會自動脫落。

進口潛水排污泵技術參數：

流量：3m3/h～1800m3/h  揚程：2m～66m  功率：0.55kW～110kW
液體溫度：0℃～+40℃   頻率：50Hz

進口潛水排污泵應用領域:

1、工廠、商業嚴重污染廢水的排放。
2、城市污水處理廠排水系統。
3、住宅區的污水排水站。
4、人防系統排水站、自來水廠的給水裝置。

5、醫院、賓guan的污水排放。

進口潛水排污泵工作條件：

1、介質溫度不超過60℃，介質重度<1.2kg/m3，抽送介質的顆粒含量重量比不大于60%，抽送介質的PH值為4-10。

2、無內自流循環冷卻系統的泵，電機部分露出液面不超過電機的1/2。

3、泵主要零件的材質為耐磨鑄鐵，所以不能用于抽送強腐蝕性介質，如需抽送強腐性介質，請說明使用條件和要求，進行特殊定貨，我們將針

對性為您設計、服務

進口潛水排污泵特點：

1、采用獨特的單、雙流道式葉輪結構，大大提高了污物通過能力，能有效地通過泵口徑的5倍纖維物質，與直徑為泵口徑約50%的固體顆粒，并

且增加了攪拌裝置，能將沉積物一并有效的排出。

2、機械密封采用雙端面密封或雙層型式，并使其長期處于油室內運行，材質取用新型硬質耐腐的碳化鎢材料，可使泵安全連續運行8000小時以上。

3、泵整體結構緊湊，體積小、噪音低、節能效果顯著，檢修方便，無需建泵房，潛入水中即可工作，大大減少工程造價。

4、電泵內設有過熱或過電流保護裝置，防止電機過載發熱，可根據用戶要求設置漏電保持裝置。

5、可根據用戶需要，配備全自動安全保護控制柜，對泵的漏水、漏電、過載及超溫度進行監控，保證泵運行的安全性和可靠性。

6、浮球開關可根據所需的液位變化，自動控制泵的起動和停止，無需專人看管，使用極為方便。

進口潛水時排污泵德國巴赫BACH售后服務：

一流的服務鑄就一流的企業讓客戶無后顧之憂。
1、按合同要求提供產品的合格證、銘牌、檢驗報告、產地證名、安裝說明書等。
2、顧客在驗收產品過程中，如出現與合同要求不符時，我司接到顧客通知后兩小時內給予處理。
3、我司提供十二個月以上產品質保期，時間從驗收合格之日起計算。
4、在正確安裝和使用下，出現產品質量問題，本公司將負責到底。

選擇德國巴赫的四大理由：

1：進步性 持續性

 回顧巴赫在中國的快速進步性 每年均高速增長，可預見一家大型的生產銷售企業的建立與發展，也必將在中國的閥門市場乃至機械行業的有所建樹。

2：可靠性

 德國巴赫的可靠性與產品之性能是公司經營理念重要組成部分。如期發貨，持續經營，高質量， 均經過嚴格的全面測驗。 這就是巴赫為何能高速發展，并且能提供越來越好的高質量產品，最優質服務的原因。

3： 價格

 現代化工廠高端自動化數控生產線確保閥門與其配件價格合理，品質優良。

和持續不斷地投資于人力，設備廠房，為用戶提供性價格比高，品質優良的閥門。

4：客戶價值觀

通過集中采購 可以降低總體的采購成本。

便捷的采購，有助于客戶優化配置人力資源，達到精簡高效。

借助巴赫充足的庫存最小化客戶的庫存投入。

高品質的閥門將幫助避免因偽劣產品而導致的停產 停工 誤工。

Imported submersible sewage pump

Overview of imported submersible sewage pump products:

Fixed automatic installation using pump and coupling device. The coupling device consists of a base, a connecting pipe fixed on a base, a double guide rail that is fixed to the base, and the automatic coupler of a submersible pump. Coupling the base fixed on pump bottom (when building sump, installed anchor bolt in advance, when using the coupling base fixed), ends fixed Settings on both sides of the groove in the bottom of a submersible pump of the positioning of the plate, the base extend to below the submersible pump, vertical to the base of double guide rail is set to respectively embedded into the positioning plate with sliding grooves on both sides of the slots with the backbone of the guide rail, two pillars of guide rail top fixed installation lifting sling bearing beam bracket. In bearing beam attached lifting sling, such as electric hoist, can easily reference to send for submersible pump, the manual operation of high strength consumption and hoisting installation facilities such as complicated process, make the submersible pump repair, replacement operation is simple, save manpower, improve efficiency, reduce the operation cost. When the pump is moving on the guide rail, the coupling device is automatically coupled to the coupling base when the pump is lowered. When extracting the pump, the pump and coupling base will fall off automatically.

Technical parameters of imported submersible sewage pump:

Flow: 3m3 / h ~ 1800m3 / h yangcheng: 2m ~ 66m power: 0.55 kW ~ 110kW

Liquid temperature: 0 ℃ ~ + 40 ℃ frequency: 50 hz

Application of imported submersible sewage pump:

1. The discharge of waste water from factories and commercial serious pollution.

2. Drainage system of urban sewage treatment plant.

3. Sewage drainage station in residential areas.

4. Water supply device of the human defense system drainage station and waterworks.

5. Sewage discharge from hospitals and hotels.

Working conditions of imported submersible sewage pump:

1, medium temperature less than 60 ℃, medium heavy < 1.2 kg/m3, pumping medium particles content weight ratio not greater than 60%, the pumping medium PH value of 4 to 10.

2. The pump of the non-internal self-flow circulating cooling system, the part of the motor exposed shall not exceed 1/2 of the motor.

3, the material of main parts for the pump wear resistant cast iron, and so cannot be used for pumping strong corrosive medium, such as pumping strong corrosion medium, the using conditions and requirements, please indicate special order, we will

Design and service for you

Characteristics of imported submersible sewage pump:

1, adopt unique single, shuangliu impeller structure, greatly improving the sewage through the ability, can effectively through the pump five times the fiber material, about 50% of pump diameter and solid particles, and

The mixing device is added and the sediment can be effectively discharged.

2, mechanical seal with double end face seal or double type, and make it run in the oil chamber for a long time, the material use new hard decay resistance of tungsten carbide material, can make the safe running more than 8000 hours continuously.

3. The pump has a compact overall structure, small volume, low noise, remarkable energy saving effect, convenient maintenance, no need to build the pump room, and can work in the water, greatly reducing the project cost.

4. The electric pump is equipped with overheating or over-current protection device, which prevents the motor overload and heating, and can set up the leakage retaining device according to the user's requirements.

5. It can be equipped with automatic safety protection control cabinet according to the user's needs, and monitor the water leakage, leakage, overload and super temperature of the pump to ensure the safety and reliability of the pump operation.

6. The float switch can automatically control the starting and stopping of the pump according to the required level of liquid level, and it is very convenient to use.
