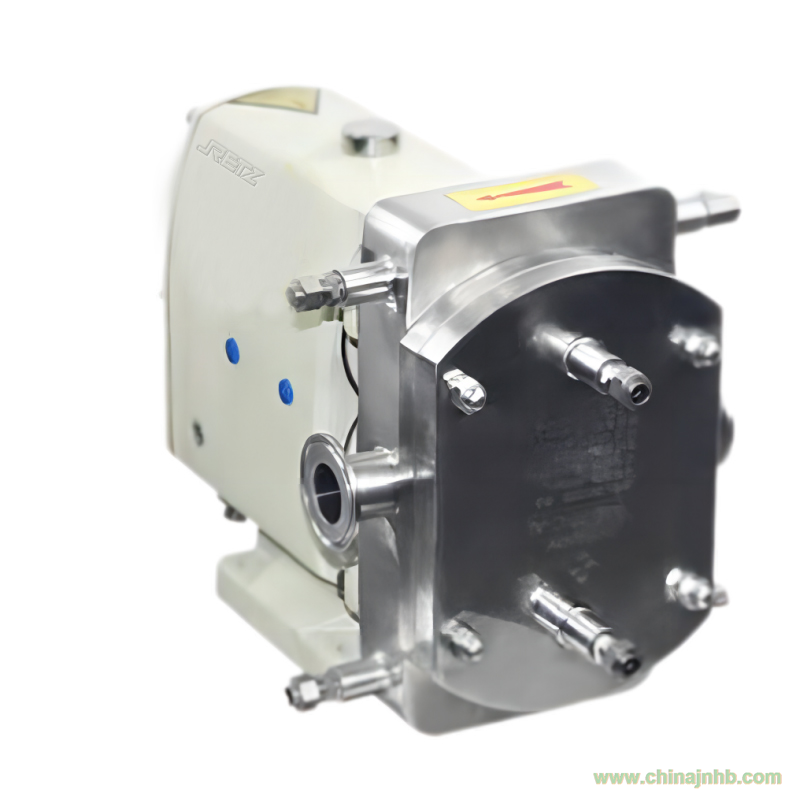

進口衛生級保溫夾套轉子泵設計有端面保溫室、外圍保溫室和全保溫室三種設計，非常適用于輸送高粘度的介質如，巧克力、糖漿、糖果等各種易凝固物料 retz
The imported sanitary insulation jacketed rotor pump has three designs: end
face insulation room, peripheral insulation room, and full insulation room,
which are very suitable for conveying high viscosity media such as chocolate,
syrup, candy, and other easily solidified materials
進口衛生級保溫夾套轉子泵選型參數
流量范圍Max.flow：90m3/H
壓力范圍Max.pressure：15bar
溫度范圍Max.Temperature：150℃
轉速范圍Max.rev：750 rpm
材質：ASTM
316L,1,.4404
內表面：Ra0.8μm
進出口連接方式：1）水平式、 2）垂直式 Inlet and outlet
connection methods: 1) Horizontal, 2) Vertical
蝶形轉子(標準)；蝶型轉子 Single butterfly
rotor
機封：?jiǎn)味嗣鏅C(jī)封(標準)、雙端面機封(選項)，材質 SIC/SIC,TC/TC
Machine seal: single end machine seal (standard), double end machine seal
(option), material SIC/SIC, TC/TC
適于CIP清洗和SIP殺菌 Suitable for CIP
cleaning and SIP sterilization
