品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口三通蝶閥分為手動和氣動兩種驅動方式，主要應用在釀酒、食品加工、乳制品和飲料等衛生工業領域retz
The three-way butterfly valve is divided into manual and pneumatic driving
modes, mainly used in the health industry fields such as brewing, food processing,
dairy products, and beverages
進口衛生級三通蝶閥結構特點

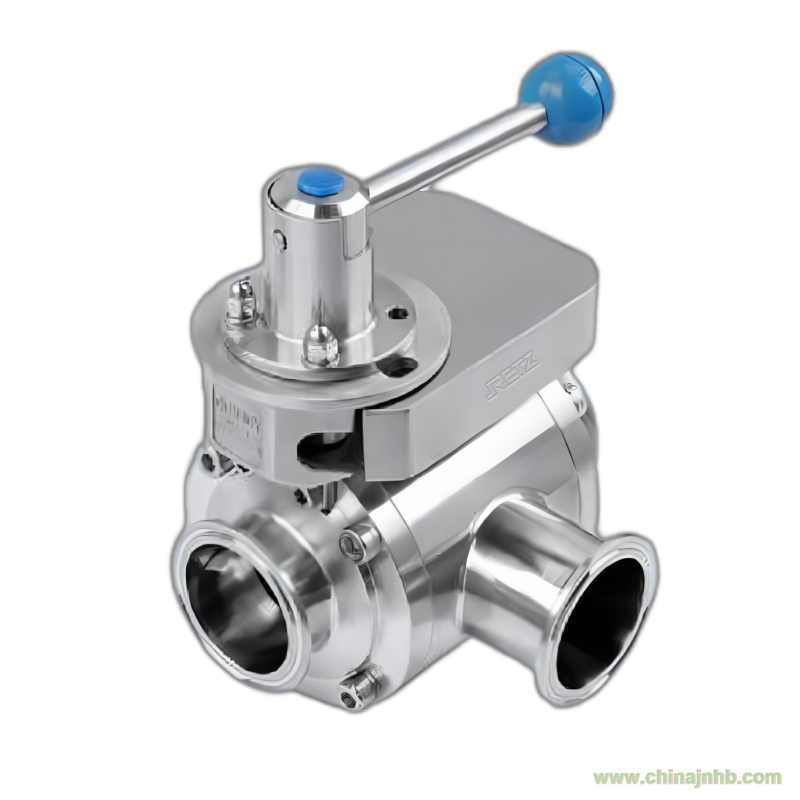

同步三通蝶閥
Synchronous three-way butterfly valve
一個驅動裝置即可實現L型和T型三通應用，啟閉同步、小扭矩、長壽命、無滯留、無死角、非常靈活功能組合、且具有高效、經濟、簡單One
driving device can achieve L-type and T-type three-way applications, with
synchronous opening and closing, small torque, long service life, no
stagnation, no dead angle, very flexible functional combination, and high
efficiency, economy, and simplicity
異步三通蝶閥：每個閥門為獨立控制
Asynchronous three-way butterfly valve: each valve is independently controlled
多個驅動裝置，每個驅動分別獨立自由控制閥門
Multiple drive devices, each drive independently and freely controls the valve
進口衛生級三通蝶閥選型參數
閥體結構：三頭蝶閥、二頭蝶閥，一頭蝶閥控制
規格：1"-4",DN25-DN100
材質：304/1.4301,316L/1.4404,ASME
BPE 316L 1.4435 NB2 Fe≤0.5%
壓力：真空～10bar(1.0
MPa)
溫度：EPDM-20℃到+130℃,取決密封于材質
密封：EPDM
SILICON FKM FFKM HNBR FVMQ NBR
連接標準：DIN
SMS ISO IDF RJT BS4825 ASME BPE3A DIN11864 DIN11853
連接方式：螺紋、卡箍、焊接、法蘭
手柄操作：多位手柄和拉桿手柄
氣動操作：常開/常閉和氣開/氣關
光潔度：Ra≤0.8μm;MP=Ra≤0.3μm;EP=Ra≤0.3μm
RETZ的衛生級蝶閥可以滿足衛生潔凈、制藥、化妝品、釀酒、食品飲料工控系統的截?cái)?、調節等流體的控制。產品涵蓋了：進口氣動衛生級蝶閥、電動衛生級蝶閥、智能調節氣動衛生級蝶閥、智能調節電動衛生級蝶閥、衛生級卡箍蝶閥、衛生級對夾蝶閥、衛生級螺紋蝶閥、衛生級焊接蝶閥、衛生級手動微調蝶閥
富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
