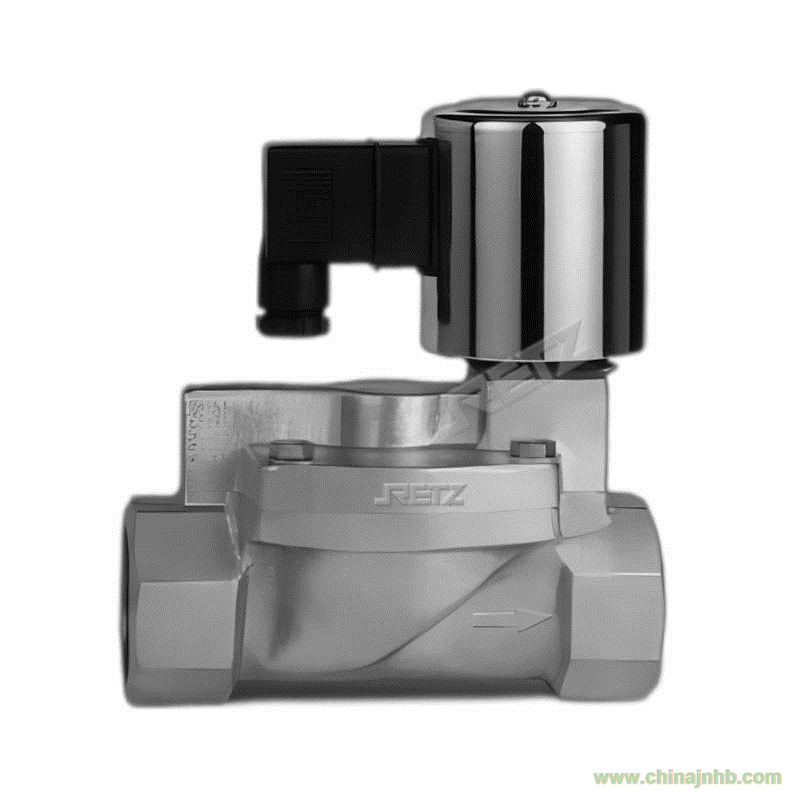

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口磁保持脈沖電磁閥打開關閉只需交換電源正負極即可，廣泛應用于IC卡燃?xì)獗?、?jié)水灌溉、水表及自動沖洗的各種衛生潔具。閥芯套管沖壓，拉伸成形，嚴密性好，壽命長，運行可靠Retz The magnetic holding pulse solenoid valve can be opened and closed by simply exchanging the positive and negative poles of the power supply. It is widely used in various sanitary appliances such as IC card gas meters, water-saving irrigation, water meters, and automatic flushing. The valve core sleeve is stamped and stretched to form, with good tightness, long service life, and reliable operation.

控制方式：直流脈沖式、打開或關閉電磁閥只需交換正負極 Control method: DC pulse type, opening or closing the solenoid valve only requires exchanging positive and negative poles

結構形式：直動式、先導式（管道有0.5bar啟動壓力）Structural form: direct acting type, pilot type (pipeline has a starting pressure of 0.5 bar)

進口磁保持脈沖電磁閥特點--

動作靈敏，耐壓高

常用于IC卡等電路控制板直接連接，具有卓越的節能效果。

介質不腐蝕的氣、水。相對濕度不超過85%的場所

進口磁保持脈沖電磁閥選型參數

接口尺寸：3/8-2’

閥體材質：鍛銅、316

連接方式：G螺紋、NPT螺紋

壓力等級：0-10bar 0.5-16bar

線圈電壓：DC12V、DC24V

脈    寬：50-80ms

組  件

密封材質：NBR、VITON、EPDM

環境溫度：0℃-65℃

介質溫度：0℃-80℃
