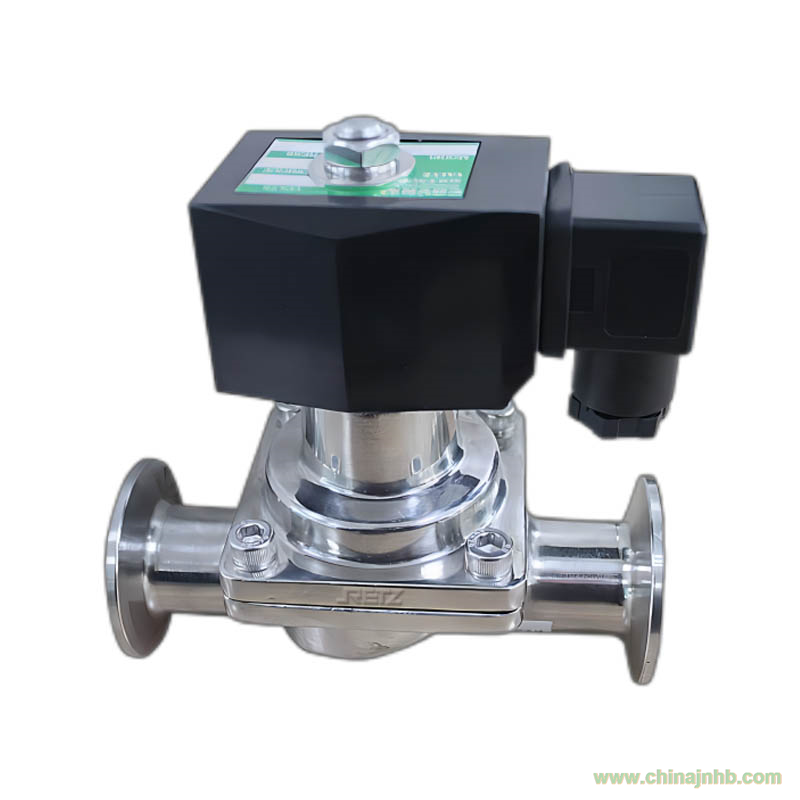

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口衛生級電磁閥一般采用卡箍連接方便拆洗,閥體材質為304或316不銹鋼，表面拋光處理精密度可以滿足食品、生物制藥領域各種介質的特殊要求，內腔無死角滯留積聚,對衛生等級要求很高的場所使用的閥門管件, 衛生級電磁閥通常用在制藥，食品、啤酒、乳品、飲料、生物、化妝品等行業中。Retz
sanitary solenoid valves generally use clamp connections for easy disassembly and
cleaning. The valve body is made of 304 or 316 stainless steel, and the
precision of surface polishing treatment can meet the special requirements of
various media in the food and biopharmaceutical fields. The inner cavity has no
dead corner retention and accumulation, and is used in valve fittings in places
with high hygiene requirements. Sanitary solenoid valves are usually used in
industries such as pharmaceuticals, food, beer, dairy products, beverages,
biology, cosmetics, etc.
進口衛生級電磁閥控制原理--Control
principle of imported sanitary solenoid valve
常閉式-通電打開，斷電關閉 Normally Closed
- Powered On, Powered Off
常開式-通電關閉，斷電打開 Normally open -
power on close, power off open
進口衛生級電磁閥結構特點--
動作靈敏度高;
膜片或活塞式結構
密封材質NBR、EPDM、FPM 多種可選;
進口衛生級電磁閥選型參數
閥體材質：不銹銹304或316
接口尺寸：3/8-2"
工作壓力：0-1.6Mpa
介質粘度：≤20mm2/s
介質溫度：-20~+250℃
環境溫度：-10~+50℃
密封材質：硅橡膠
標準電壓：AC：220V（50/60HZ)/DC:24V
防護等級：IP65
